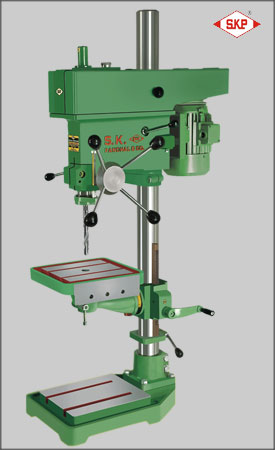

Model No. 20 SBR-20
SFR-20 SPR ( Super Millennnium ) |
|
FITTED WITH HARDENED & GROUND SPINDLE |
|
|
|
| No. |
SPECIFICATION |
20SBR |
20SFR |
20SPR |
| 1 |
Drilling Capacity |
20 MM |
20 MM |
20MM |
| 2 |
No of Spindle Speed |
8 |
8 |
8 |
| 3 |
Range Of Spindle Speed |
86 to 3368 |
86 to 3368 |
86 to 3368 |
| 4 |
Spindle nose |
M.T. - 2 |
M.T. - 2 |
M.T. - 2 |
| 5 |
Spindle Center to column |
204mm |
204mm |
204mm |
| 6 |
Spindle travels |
130mm |
130mm |
130mm |
| 7 |
Table size |
280x275 mm |
280x275 mm |
280x275 mm |
| 8 |
Maximum Distance Spindle to Table |
340 mm |
650 mm |
960mm |
| 9 |
Maximum Distance Spindle to base |
645 mm |
960mm |
1275mm |
| 10 |
Working suface of base |
290x245 mm |
290x245 mm |
290x272 mm |
| 11 |
Overall size of base |
460x315 mm |
460x315 mm |
514x365 mm |
| 12 |
Column diameter |
72 MM |
72 MM |
72 mm |
| 13 |
Overall dimension |
675x380x1180 |
675x380x1500 |
675x380x1820 |
| 14 |
Motor capacity |
0.55 kw/0.75hp |
0.55 kw/0.75 hp |
0.55kw/0.75hp |
| 15 |
Motor R.P.M. |
1440 |
1440 |
1400 |
| 16 |
Weight of machine (Approx) |
102 kg |
105 kg |
115 kg |
|
|
| |
| |
|
|
|
