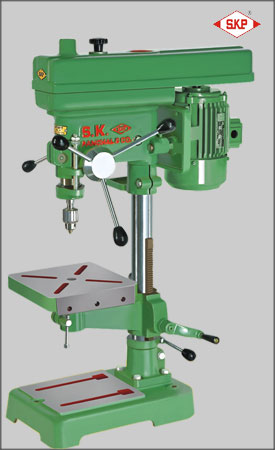

| Model No. 6 MM HSS |
| |
|
| |
6 |
|
| |
| |
|
| No. |
SPECIFICATION |
6mm HSS |
| 1 |
Drilling Capacity |
6 mm |
| 2 |
No of Spindle Speed |
2 |
| 3 |
Range Of Spindle Speed |
5000 to 10000 |
| 4 |
Spindle nose |
J2 (1) Taper |
| 5 |
Spindle Center to column |
153mm |
| 6 |
Spindle travels |
60mm |
| 7 |
Table size |
210 x 207 mm |
| 8 |
Maximum Distance Spindle to Table |
177 mm |
| 9 |
Maximum Distance Spindle to base |
400mm |
| 10 |
Working suface of base |
210x 190 mm |
| 11 |
Overall Dimension |
365x 240 mm |
| 12 |
Column diameter |
47 MM |
| 13 |
Overall dimension |
555x 325 x 820 |
| 14 |
Motor capacity |
0.37 kw / 0.50 h.p. |
| 15 |
Motor R.P.M. |
2800 |
| 16 |
Weight of machine (Approx) |
42.500 kg |
|
|
|
|
|
